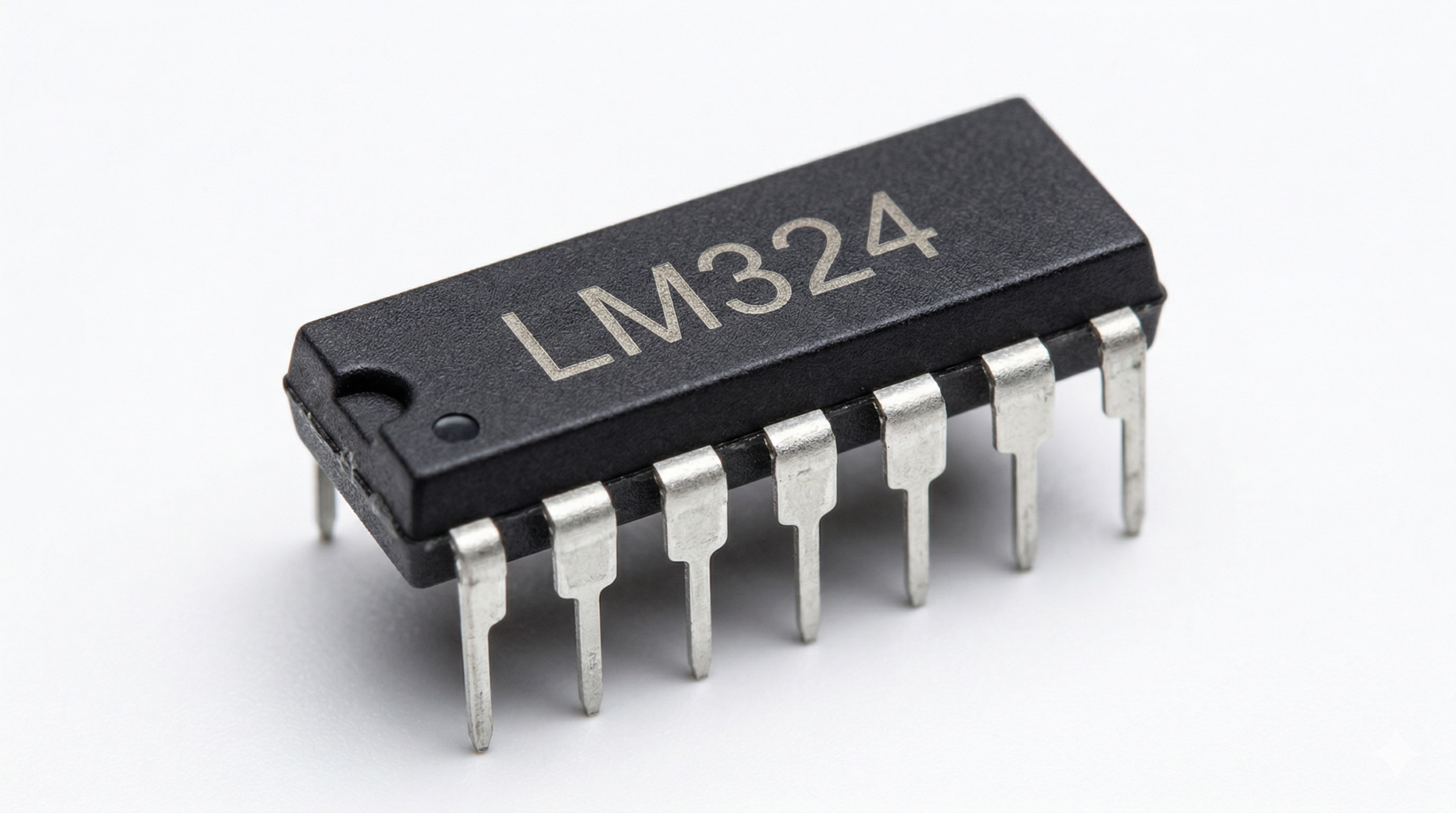

LM324 IC – Quad Operational Amplifier

The LM324 IC is a quad operational amplifier designed for a wide range of general-purpose analog electronic applications. It integrates four independent operational amplifier channels into a single IC package, making it useful for circuit designs requiring multiple amplification or signal-conditioning stages.

The LM324 family is designed for operation from a single power supply as well as split-supply configurations. Its common-mode input range includes ground, making it suitable for many low-voltage and single-supply applications.

Key Features
Quad operational amplifier IC
Four independent amplifier channels
General-purpose analog amplifier
Wide supply-voltage operating range
Common-mode input range includes ground
Suitable for single-supply applications
Suitable for signal conditioning and amplification
Designed for a wide range of analog circuits
Available in multiple package options depending on variant
Applications

The LM324 IC can be used in:

Signal amplification
Signal conditioning
Voltage sensing
Sensor interfaces
Active filters
Analog control circuits
Instrumentation circuits
Audio-related circuits
Power supply monitoring
General-purpose analog electronics
Electronic prototyping
